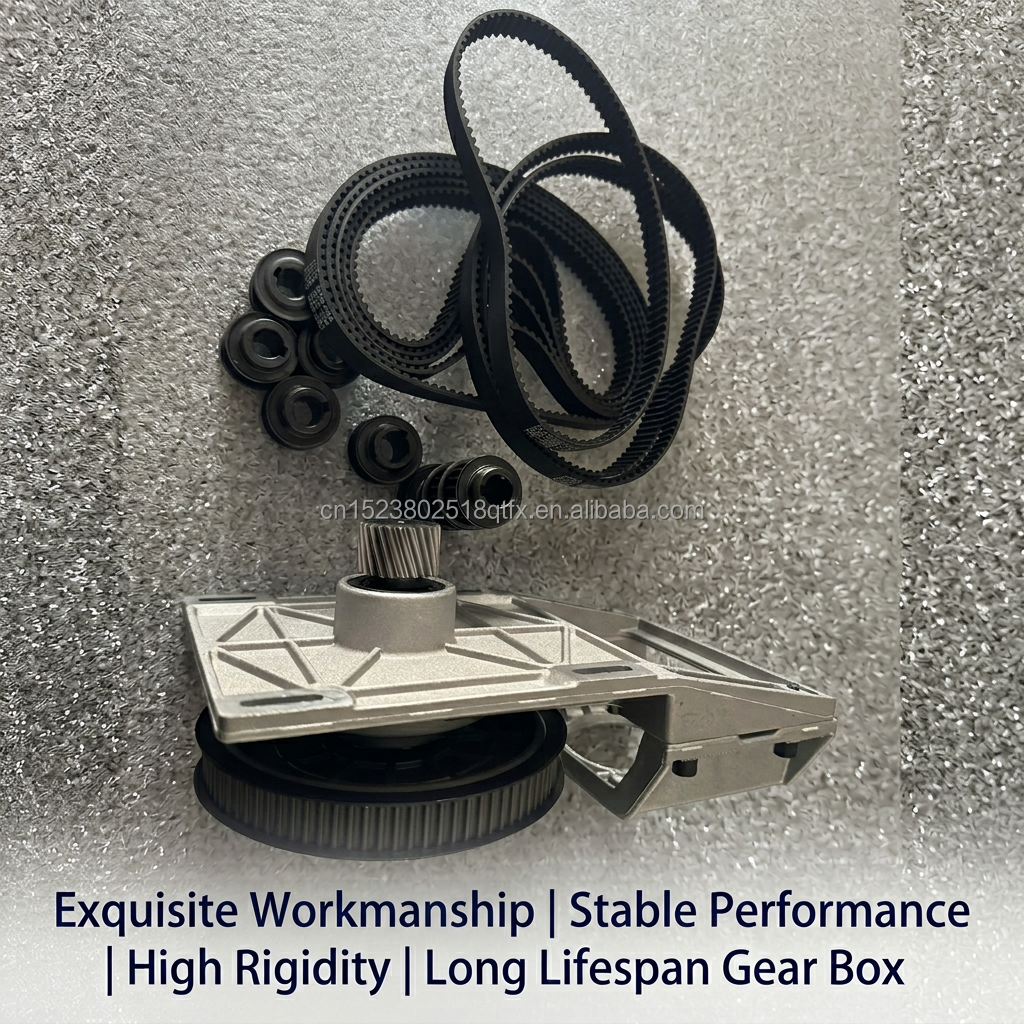

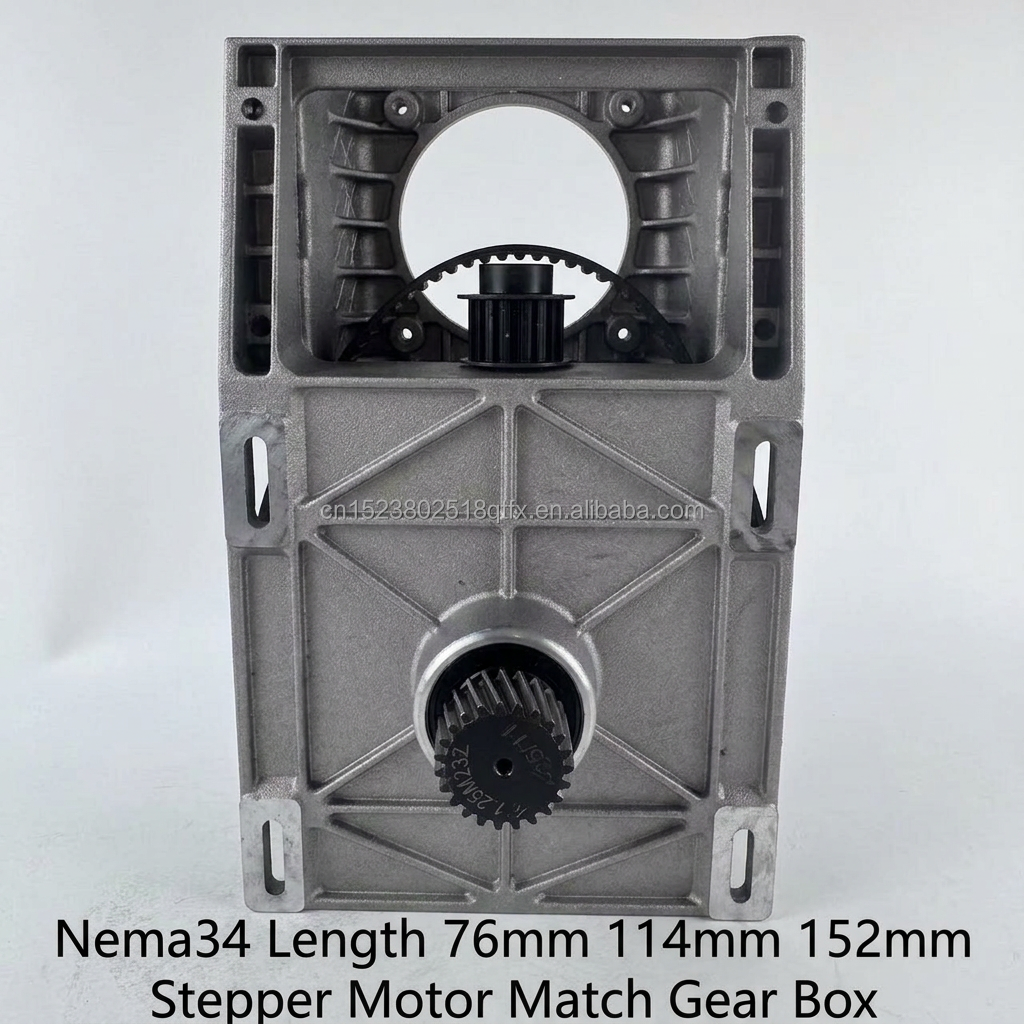

JLE CNC TECH Mod 1.25 Integrated Helical Tooth Gearbox for CNC Router Engraver Cnc Router Use Gear Box

Product Description

Cnc Router Gearbox Ration 1:5
Product Description: Gearbox Transmission Principle for CNC Engraving Machine (X / Y Axis)
Basic Parameters
  • Synchronous Large Pulley 90 Teeth
  • Synchronous Small Pulley 18 Teeth
  • Main Reduction Ratio 90 : 18 = 5 : 1
Power Transmission Path
1

Driver sends signal → motor starts rotating

2

Motor shaft connects directly with 18T small pulley inside gearbox

3

18T pulley drives 90T large pulley via synchronous belt

4

Torque is transmitted to internal bearing & helical gear stage

5

Internal reduction structure drives the gear shaft

6

Gear shaft engages with rack

7

CNC engraving machine moves linearly on X-axis and Y-axis

Key Features
Precision belt drive with 5:1 reduction ratio
Smooth torque transmission from motor to rack
Helical gear & bearing structure inside for stable operation
Direct X / Y axis motion – ideal for CNC engraving machines
Easy integration with standard driver and servo/stepper motor
